Editor’s Note: This post was originally found on http://www.oliveandlove.com/ but has been removed. We have moved this tutorial here for those of you interested.

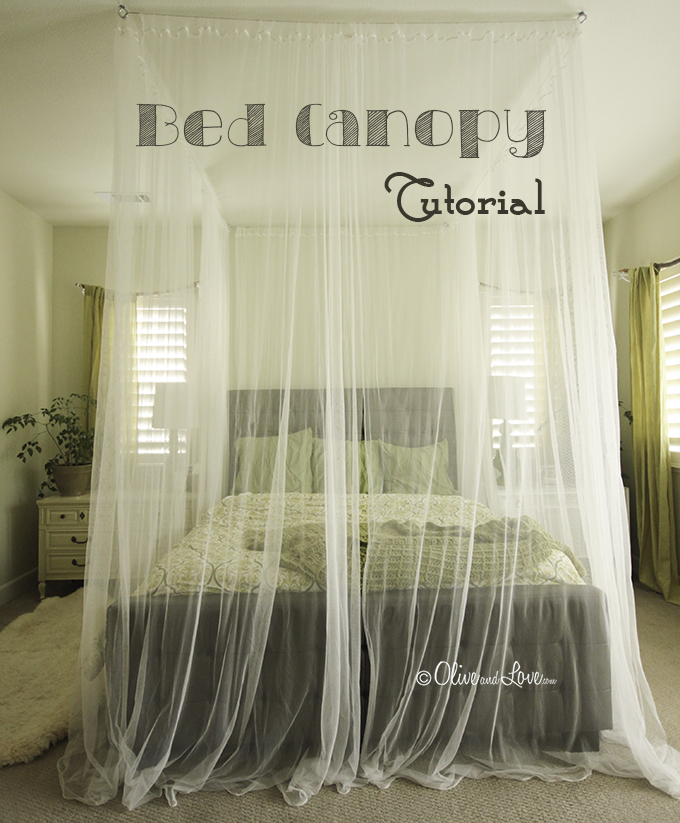

My ceiling mounted bed canopy consisting of eyebolts, turn buckles and wire thread through sheer curtains from Ikea.
ceiling mounted bed canopy DIY how to tutorial
I’ve been taking the design of my bedroom one element at a time.  It’s one of the last rooms in the house for us to put our stamp on so we’ve had time to invent and reinvent design concepts.  My original idea for a bed canopy consisted of four down rods, bringing the start of the canopy 18” down from the ceiling. Structurally this presented some difficulties as Dan and I were worried the down rods would pull inward from the pressure of the wire and curtains. Not ready to give up, I continued to think about construction of the design while we installed the tree branch curtain rods.
bed canopy tutorial DIY Olive and Love
Once I gave up the down rod idea, the construction was fairly simple. Four eye bolts threaded through washers are screwed into predrilled holes in the ceiling. We drilled the holes six inches wider then the perimeter of our bed and one foot longer. We didn’t have our dream frame yet, nor had I dreamt it so we hoped the size would accommodate our needs. Update:  We’re golden.  The West Elm bed fit perfectly in the spot.
ceiling mounted bed canopy DIY how to tutorial
Dan my man crawled into our ceiling to thread a washer and bolt on to the end of each eye hook. Our bolts go through dry wall only, so swinging is NOT recommended…it would be more like 50 shades of falling if we tried.
ceiling mounted bed canopy DIY how to tutorial
We have two wires that hold the curtains. Both are 3/32 wire rope available at your local hardware store. One stretches between the two eye hooks along the back wall and the other stretches around the sides and foot of the bed.

1/8″ Double Ferrules

The beginning of the wire is threaded through a double ferrule, then through the first eye hook and then back through the double ferrule and crimped very carefully using bolt cutters. The correct tool for this is a couple hundred dollars but a bold cutter works just fine.
thimble
We also threaded the wire through a thimble where it curves back through the eyebolt for an even (yet unnecessary) finish.
bed canopy tutorial DIY Olive and Love
 The wire is then thread through two curtains, then through another eyebolt, then two curtains, another eyebolt and then two more curtains. The final connection to the eyebolt consists of a 3/8” turnbuckle and another thimble (for an even finish around the eye bolt). This makes it possible to tighten the wire rope enough to not sag. Careful not to over tighten.
bed canopy tutorial DIY Olive and Love
ceiling mounted bed canopy DIY how to tutorial
I used the cheap sheers from IKEA. However they were two short after I changed the architectural design and so I very carefully seam ripped the rod hem, turned the curtains on their side and re-stitched them into place which added a couple feet to the length. Not a big deal but a bit time consuming since I did this times eight.
bedroom rotating two fans ceiling canopy curtains
...
